Atlas

Plan Details

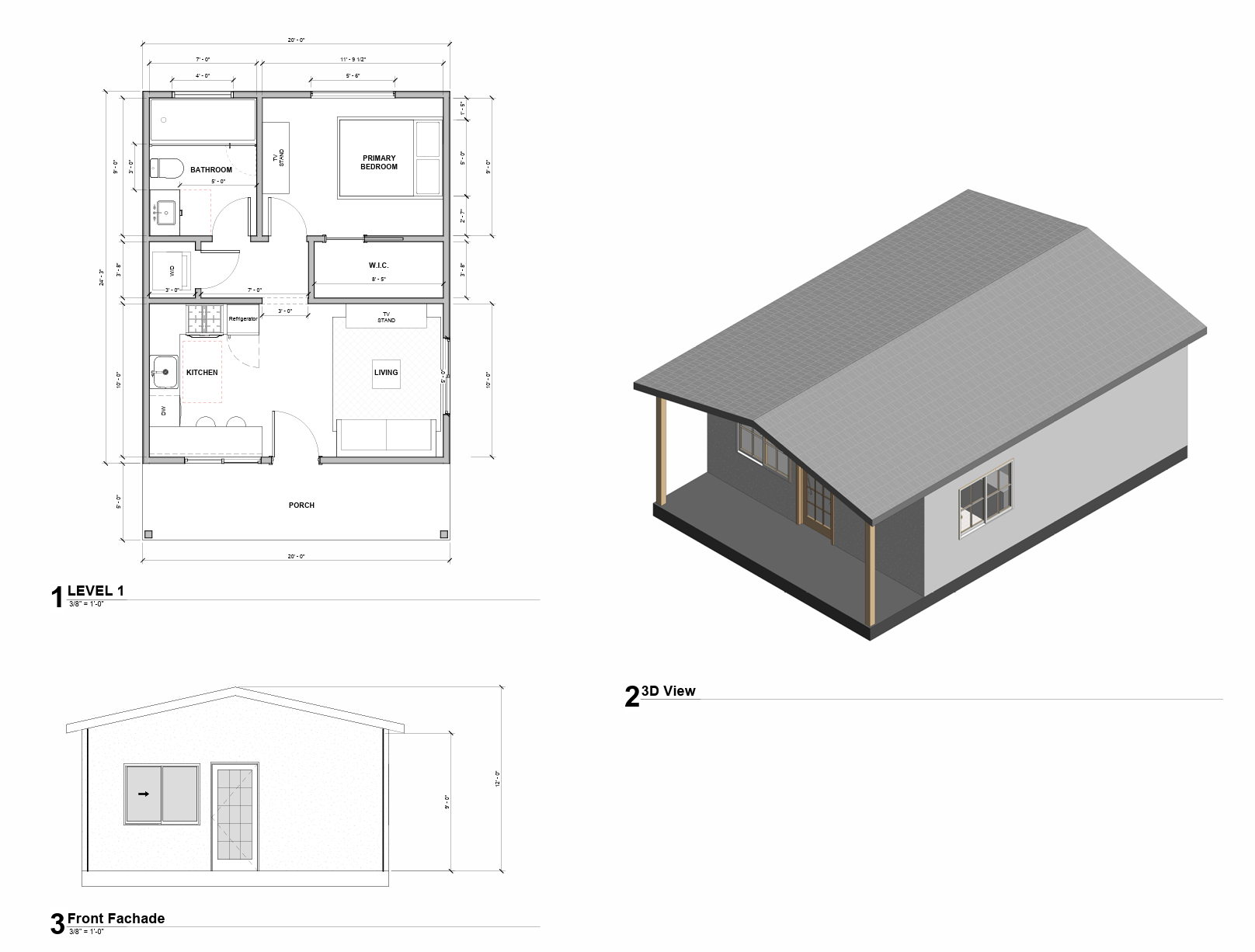

The Atlas is a thoughtfully designed 480 sq ft ADU that balances efficiency with comfort. This 1-bedroom, 1-bathroom floor plan features a spacious primary bedroom, a generous walk-in closet, an open-concept kitchen and living area, and a covered front porch — all within a compact 20' × 24' footprint (plus 5' porch).

Key Features

• Primary Bedroom (11'–9½" × 9'): A full-sized bedroom with space for a queen bed, nightstands, and a TV stand. Large windows bring in natural light.
• Walk-In Closet (8'–5" × 3'–8"): A dedicated walk-in closet adjacent to the bedroom provides generous storage space.
• Full Kitchen: L-shaped kitchen with full-size refrigerator, dishwasher, stove/oven, and ample counter space for daily cooking.
• Full Bathroom (5' × 9'): Complete bathroom with a bathtub/shower combo, toilet, and vanity with sink. Washer/dryer hookup included in the bathroom area.
• Open Living Area: Combined living room with space for a couch, TV stand, and dining area, creating a comfortable social space.
• Covered Porch (20' × 5'): A full-width covered front porch extends the living space outdoors.

Specifications

• Total Living Area: 480 sq ft (20' × 24')
• Porch: 100 sq ft (20' × 5')
• Bedrooms: 1
• Bathrooms: 1
• Roof Type: Gable roof (various roof types available)
• Ceiling Height: 8–12 ft options available
• Building Height: 12–16 ft
• Washer/Dryer: Hookup included

Architectural Design

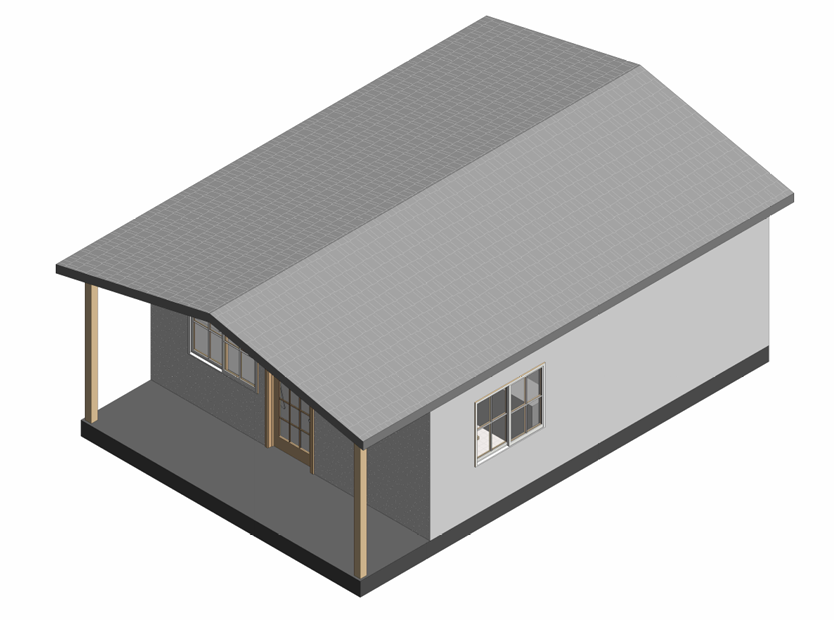

The Atlas features a classic gable roof design that provides excellent water drainage and the option for vaulted ceilings. The covered patio extends the usable living space outdoors, creating a seamless indoor-outdoor experience. Multiple ceiling height options (8–12 ft) allow you to customize the interior feel, while various roof styles are available to match your main home's architecture.

Customization and Modifications

Every project is unique. We offer modification services for the Atlas floor plan — whether you need to adjust the layout, swap the kitchen and bedroom positions, modify window placements, or change the roof style. Our design team will work with you to create the perfect plan for your property.

What's Included

• General Notes and Perspectives: Comprehensive information and visual representations of the design.
• Fully Dimensioned Floor Plans: Detailed plans with exact measurements.
• Foundation and Roof Plan: Specific plans for the foundation and roofing structure.
• Elevations: Exterior views of the building from all sides.
• Building and Wall Sections: Cross-sectional views detailing construction aspects.
• Suggested Electrical Layout: Recommendations for electrical system placement.
• Customization available
