Why Most ADUs Use a Mini-Split System and How It Works

When planning an Accessory Dwelling Unit (ADU) in California, one of the most critical decisions you'll make for comfort and long-term efficiency is selecting the right heating and cooling system. While traditional central HVAC systems have their place, an overwhelming majority of new ADUs, from cozy granny flats to spacious backyard homes, opt for a ductless mini-split system. But what exactly is an ADU mini-split system, and why has it become the undisputed champion for these versatile secondary residences? Let's dive deep into the technology, benefits, and operational magic behind these incredibly popular units.

What Exactly is an ADU Mini-Split System?

At its core, a mini-split system is a highly efficient heating and cooling solution that, unlike central air, doesn't rely on extensive ductwork. It consists of two main components: an outdoor condenser/compressor unit and one or more indoor air-handling units. These units are connected by a small conduit that houses the refrigerant lines, power cable, and condensate drain line, requiring only a small hole through the wall.

For ADUs, this ductless design is a game-changer. Given their often smaller footprints and varying layouts, running traditional ducts can be costly, inefficient, and consume valuable space. Mini-splits offer a sleek, streamlined alternative that provides precise climate control where and when you need it.

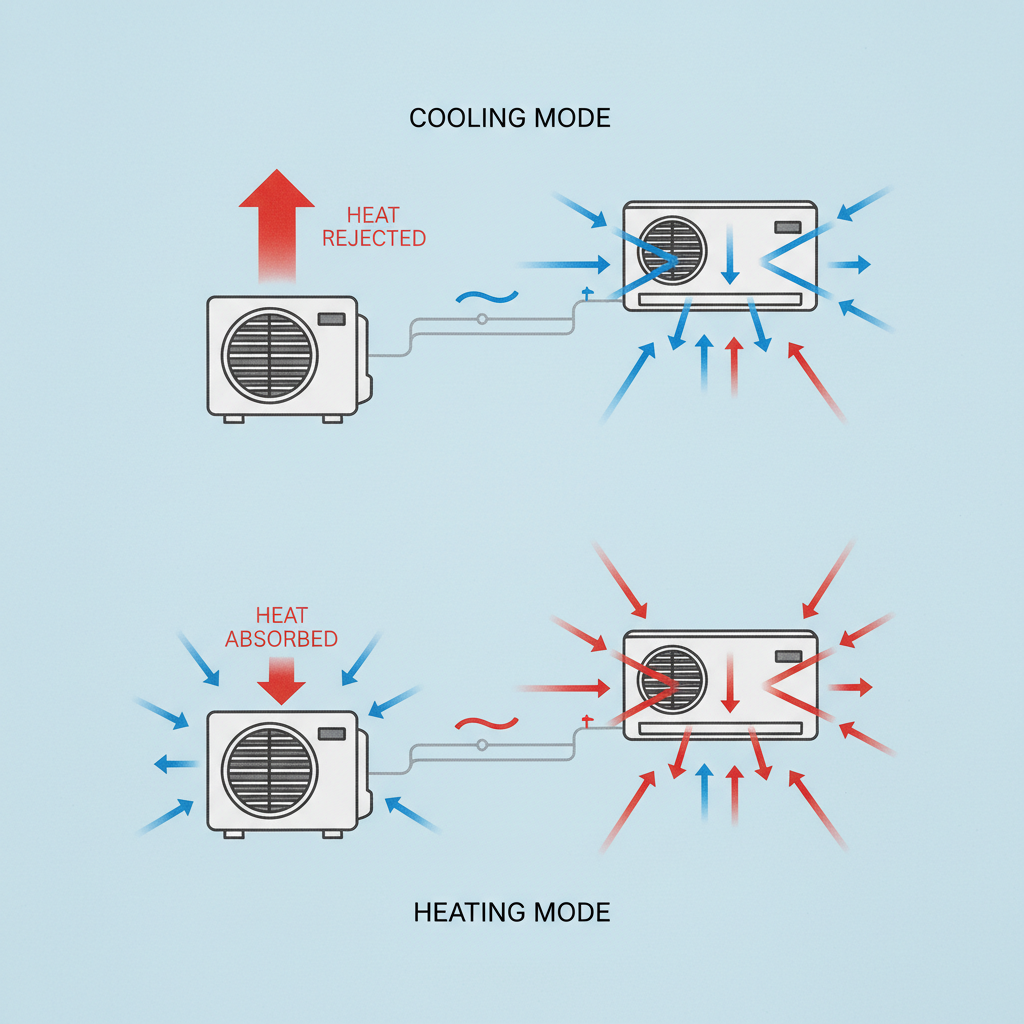

How Does a Mini-Split System Work?

Understanding the "how" behind a mini-split's operation reveals its genius for efficiency. The process is a continuous cycle of heat exchange:

• Cooling Mode:
  1. The indoor unit draws in warm room air.
  2. Refrigerant inside the indoor coil absorbs heat from the air, turning into a low-pressure gas.
  3. This gas travels to the outdoor unit, where the compressor increases its pressure and temperature.
  4. The hot, high-pressure gas flows through the outdoor coil, releasing its heat to the cooler outside air as it condenses back into a liquid.
  5. The liquid refrigerant then returns to the indoor unit, passes through an expansion valve (which lowers its pressure and temperature), and is ready to absorb more heat, repeating the cycle.
  6. The indoor unit then blows the now-cooled air back into the room.
• Heating Mode (Heat Pump Function):

  One of the most impressive features of modern mini-splits is their ability to reverse the refrigeration cycle, effectively operating as a heat pump. In heating mode:

  1. The outdoor unit absorbs heat from the outside air (even in cold temperatures).
  2. The refrigerant then carries this heat indoors.
  3. The indoor unit releases the absorbed heat into the room, warming the space.

  This heat pump technology is incredibly efficient because it moves heat rather than generating it, consuming significantly less electricity than traditional electric resistance heaters.

The Undeniable Advantages: Why Mini-Splits Reign Supreme for ADUs

The reasons for the widespread adoption of ADU mini-split systems are numerous and compelling:

Energy Efficiency & Cost Savings

• Zoned Heating & Cooling: Unlike central systems that cool or heat an entire home, mini-splits allow you to control individual zones (rooms or areas). If your ADU has a separate bedroom and living area, you can cool the bedroom at night and only the living area during the day, saving significant energy.
• No Ductwork Energy Loss: Traditional duct systems can lose 20-30% of their heating or cooling energy through leaks and poor insulation. Mini-splits, being ductless, eliminate this loss entirely, translating directly into lower utility bills.
• Inverter Technology: Most modern mini-splits use inverter-driven compressors, which can vary their speed to precisely match the heating or cooling load. This avoids the energy-intensive on/off cycling of conventional systems, leading to more consistent temperatures and greater efficiency.

Compact Design & Space-Saving

ADUs are often designed to maximize living space within a smaller footprint. Mini-splits excel here:

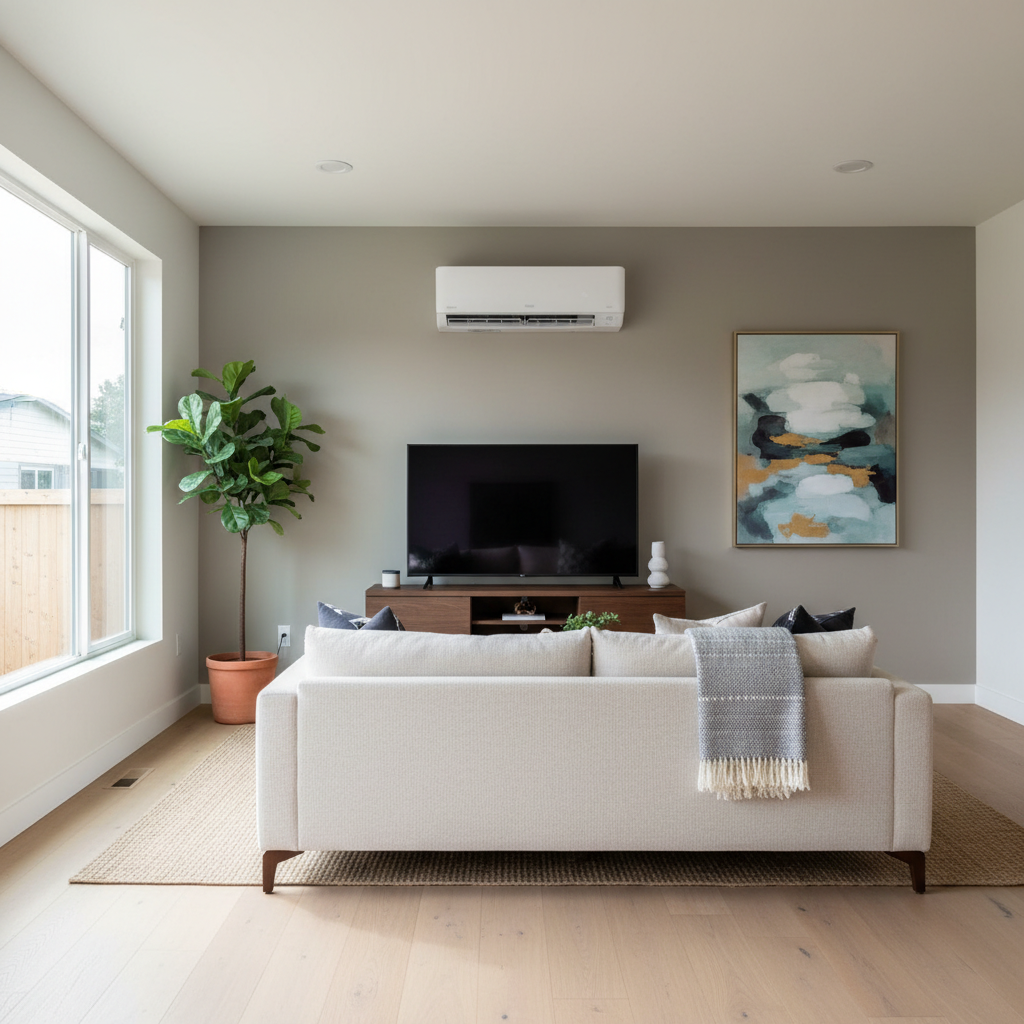

• Minimal Indoor Footprint: The indoor units are sleek, wall-mounted, or ceiling-cassette designs that take up no floor space.
• No Mechanical Closet Needed: Without ducts and a large indoor air handler, you eliminate the need for a dedicated mechanical closet, freeing up precious square footage for living or storage.

Zoned Comfort & Flexibility

For ADUs with multiple rooms or distinct living zones, mini-splits offer unparalleled flexibility:

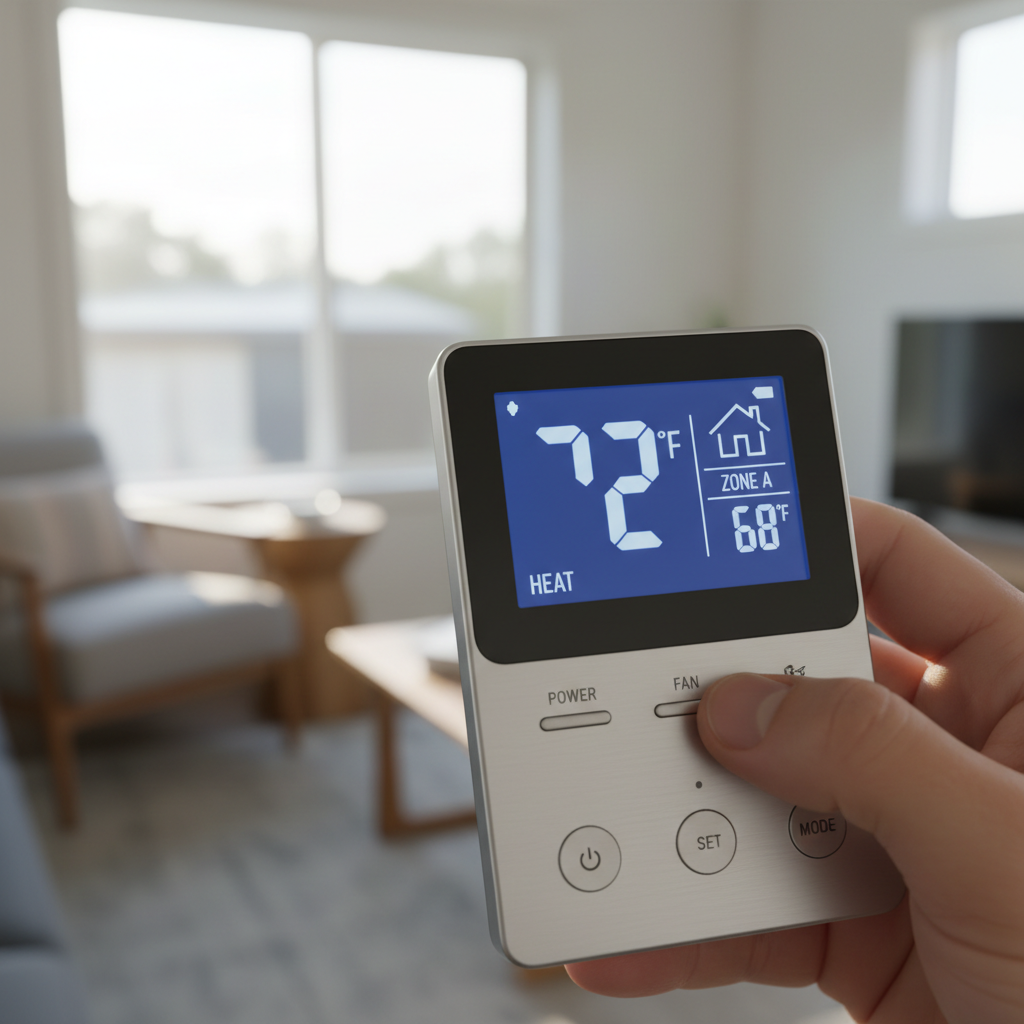

• Individual Temperature Control: Each indoor unit can be set to a different temperature, catering to individual preferences or varying needs throughout the day.
• Quiet Operation: With the noisy compressor located outdoors, indoor units operate very quietly, often comparable to a soft whisper, ensuring a peaceful living environment.

Simplified Installation & Versatility

Installation of mini-splits is typically less invasive and faster than ducted systems:

• No Extensive Demolition: Only a small hole for the conduit is needed, not large openings for ductwork.
• Adaptable Placement: Indoor units can be placed on walls, ceilings, or even floor-standing, offering versatility to suit any ADU layout and aesthetic.

Meets California's Energy Standards (Title 24)

California has some of the most stringent energy efficiency standards in the nation, known as Title 24. Mini-split heat pumps are particularly well-suited to meet and exceed these requirements:

• High SEER/HSPF Ratings: Mini-splits typically boast high Seasonal Energy Efficiency Ratio (SEER) and Heating Seasonal Performance Factor (HSPF) ratings, indicating superior energy performance.
• Electrification Trend: As California moves towards electrifying homes and reducing reliance on natural gas, heat pump mini-splits are a perfect fit, providing all-electric heating and cooling from a single, efficient source.

Considering an ADU project for your property? Don't leave your comfort to chance. Talk to an ADU expert at GatherADU today to discuss how the right mini-split system can enhance your backyard home.

Single-Zone vs. Multi-Zone: Choosing the Right Setup for Your ADU

The type of mini-split system best for your ADU depends on its size, layout, and how you plan to use its different spaces:

• Single-Zone Mini-Split: Ideal for smaller, open-concept ADUs (like studios or one-room units) where a single indoor unit can effectively heat and cool the entire space. It's the simplest and often the most cost-effective solution.
• Multi-Zone Mini-Split: Perfect for larger ADUs with multiple rooms (e.g., a separate bedroom, living room, and kitchen). A single outdoor unit connects to two or more indoor units, each independently controlled. This allows for customized comfort in each area and further energy savings by only conditioning occupied spaces.

Important Considerations Before Installation

While mini-splits are fantastic, a successful installation requires careful planning:

• Sizing: Proper sizing is crucial. An undersized unit won't effectively heat or cool, while an oversized unit will cycle on and off frequently, reducing efficiency and comfort. A qualified HVAC technician will perform a load calculation (Manual J) specific to your ADU's insulation, windows, and climate.
• Placement: The location of both the indoor and outdoor units affects performance, noise, and aesthetics. Indoor units should be placed to ensure optimal airflow and minimize drafts. Outdoor units need adequate clearance for airflow and should be positioned where their operational sound won't disturb residents or neighbors.
• Maintenance: Like any HVAC system, mini-splits require regular maintenance to operate efficiently. This typically involves cleaning or replacing filters, checking refrigerant levels, and ensuring coils are clear of debris. Regular maintenance extends the life of the unit and maintains its high efficiency.

Understanding these options and considerations is key to maximizing your ADU's comfort and efficiency. If you're exploring ADU options and want to ensure every detail, from foundation to HVAC, is perfect, get your free project estimate from GatherADU. Our experts can guide you through the entire process.

Conclusion

The ADU mini-split system has emerged as the definitive choice for heating and cooling accessory dwelling units in California, and for good reason. Its unparalleled energy efficiency, compact design, quiet operation, and ability to provide zoned comfort make it perfectly suited for the unique demands of smaller, modern living spaces. By eliminating the need for bulky ductwork and leveraging advanced heat pump technology, mini-splits not only reduce utility costs but also contribute to a more sustainable and comfortable environment.

As you embark on your ADU journey, selecting the right HVAC system is a decision that will impact the comfort, cost, and environmental footprint of your new structure for years to come. With a mini-split, you're choosing a proven, high-performance solution that aligns perfectly with the goals of efficiency and livability for any backyard home.

Ready to build the perfect ADU, complete with an optimized heating and cooling system? Don't leave your ADU project to guesswork. Book a free ADU consultation with GatherADU today to explore your options and get started on your dream backyard home!
